Main Figure Prep (IGN Data)

Authors
Affiliations
Curvenote
Curvenote

Main Timeline Figure INVOLCAN

LON LAT DEP YYYY MM DD HH MI SS MAG

import pandas as pd
import matplotlib
import matplotlib.pyplot as plt
%matplotlib inline
import seaborn as sns
import numpy as np
sns.set_theme(style="whitegrid")
def make_category_columns(df):
    df['Depth'] = 'Shallow (<17km)'
    df.loc[df['Depth(km)'] >= 17, 'Depth'] = 'Deep (>17km)'

    df['D'] = 'S'
    df.loc[df['Depth(km)'] >= 17, 'D'] = 'D'

    df['Mag'] = 0
    df.loc[(df['Magnitude'] >= 1) & (df['Magnitude'] <= 2), 'Mag'] = 1
    df.loc[(df['Magnitude'] >= 2) & (df['Magnitude'] <= 3), 'Mag'] = 2
    df.loc[(df['Magnitude'] >= 3) & (df['Magnitude'] <= 4), 'Mag'] = 3
    df.loc[(df['Magnitude'] >= 4) & (df['Magnitude'] <= 5), 'Mag'] = 4

    return df

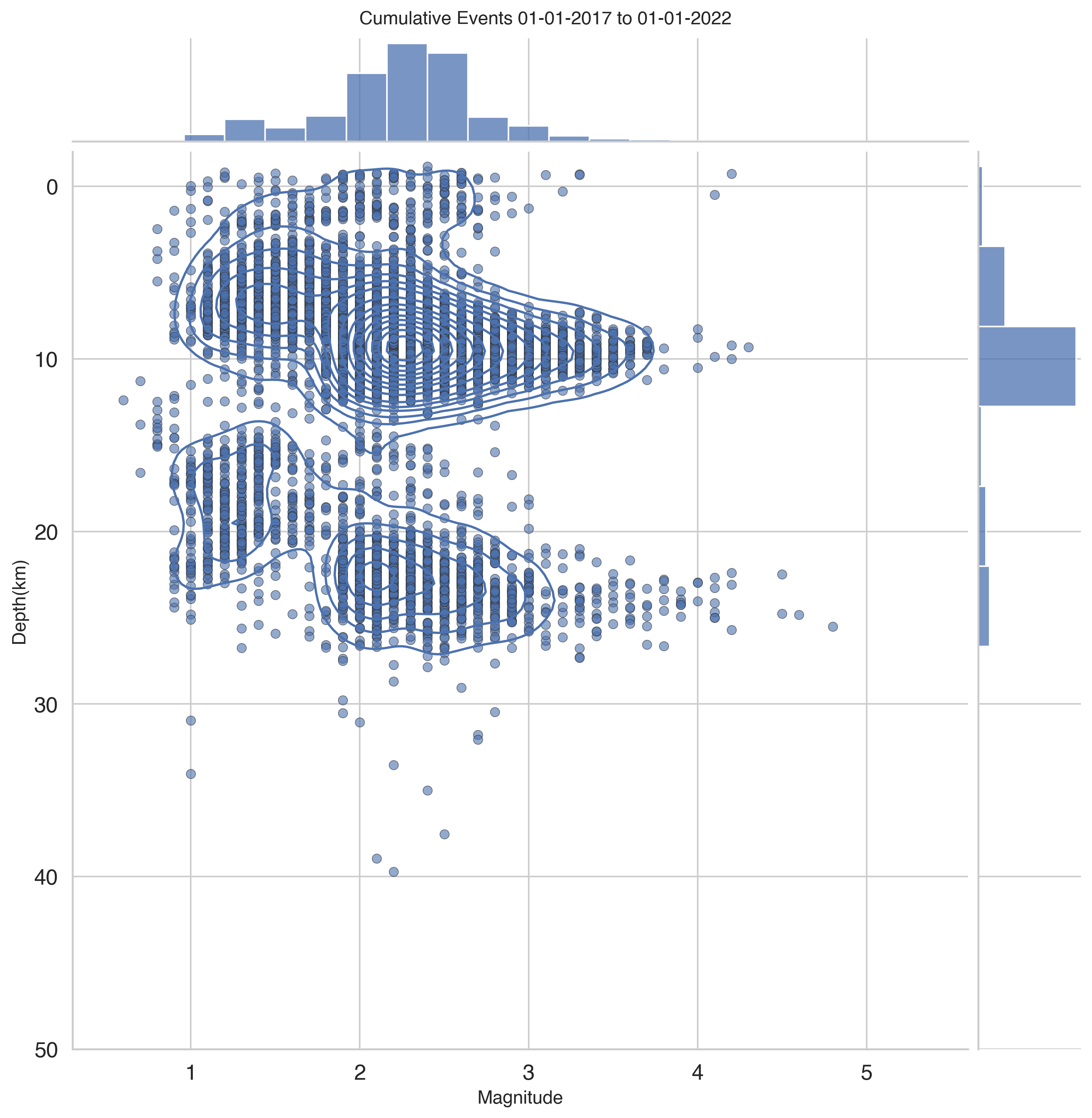

Visualising Long term earthquake data

Data taken directly from the IGN Catalog

df_ign = pd.read_csv('./lapalma_ign.csv')
df_ign = make_category_columns(df_ign)
df_ign.head()
Loading...
df_ign['DateTime'] = pd.to_datetime(df_ign['DateTime'])
df_ign['DateTime']
0 2017-03-09 23:44:06 1 2017-03-10 00:16:10 2 2017-03-10 00:16:11 3 2017-03-10 03:20:26 4 2017-08-21 02:06:55 ... 11342 2022-09-14 00:20:51 11343 2022-09-14 01:40:30 11344 2022-09-14 01:44:52 11345 2022-09-14 02:03:08 11346 2022-09-14 03:58:59 Name: DateTime, Length: 11347, dtype: datetime64[ns]

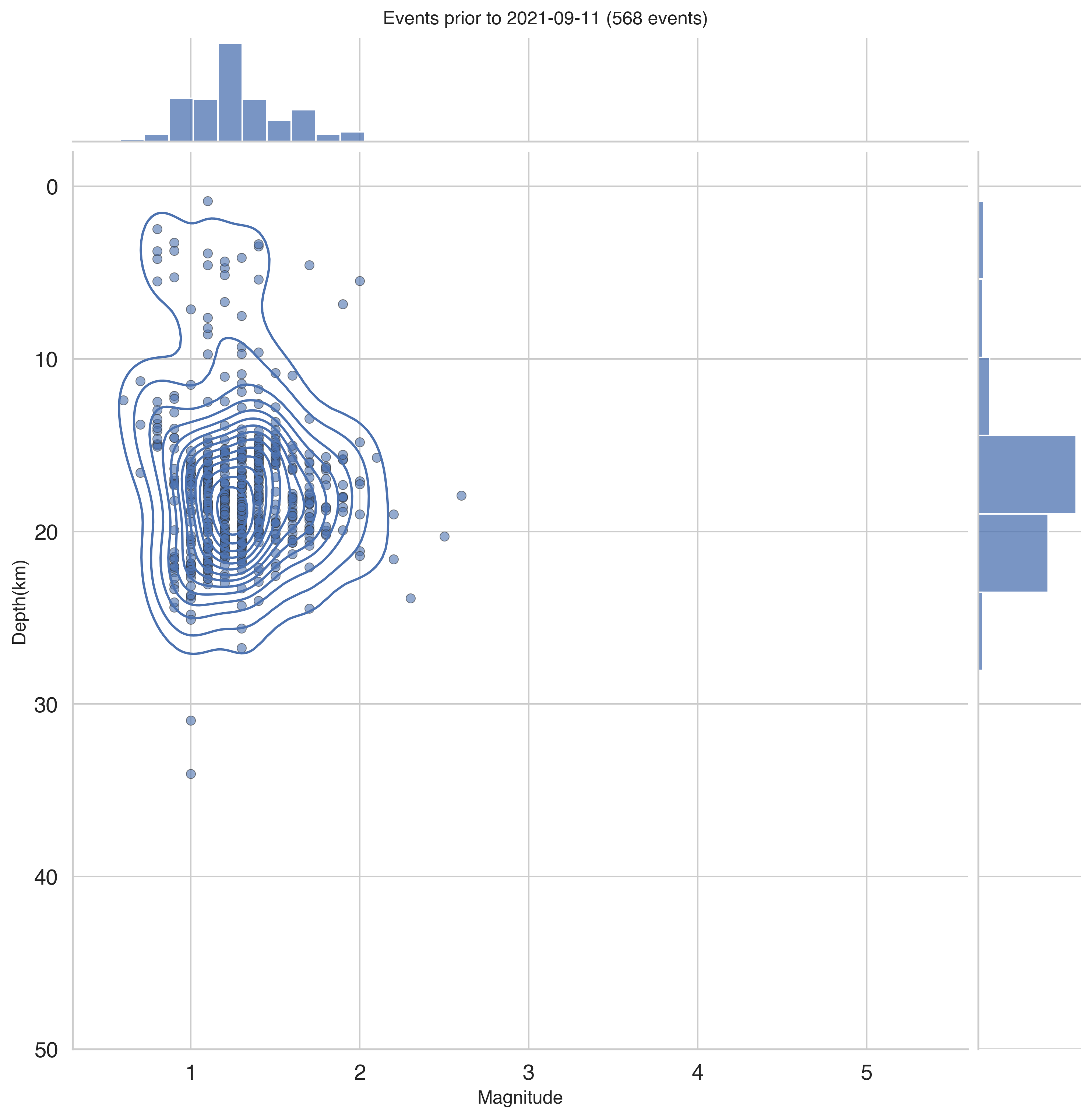

df_early = df[df['DateTime'] < '2021-09-11']

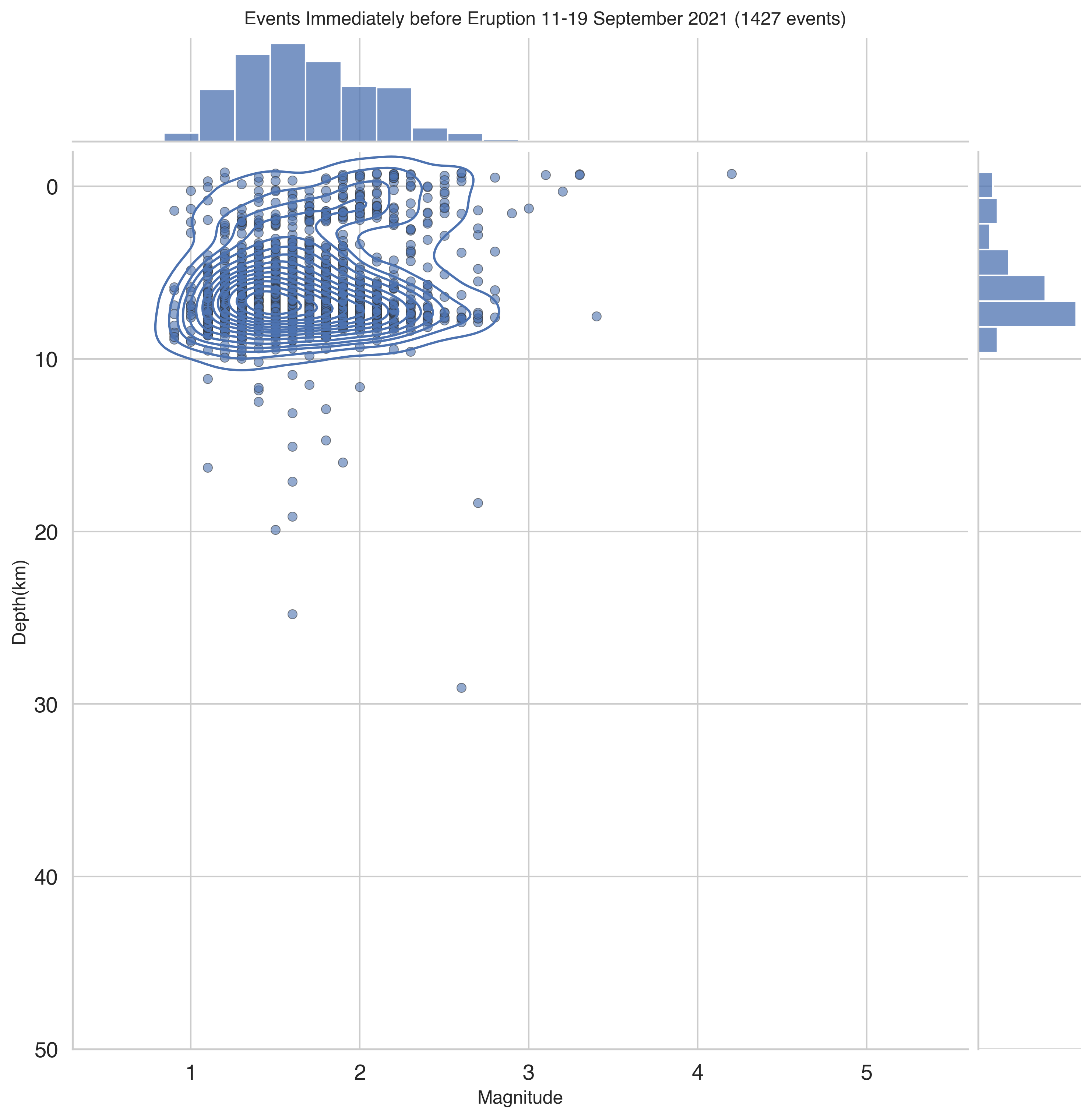

df_pre = df[(df['DateTime'] >= '2021-09-11')&(df['DateTime'] < '2021-09-19 14:13:00')]

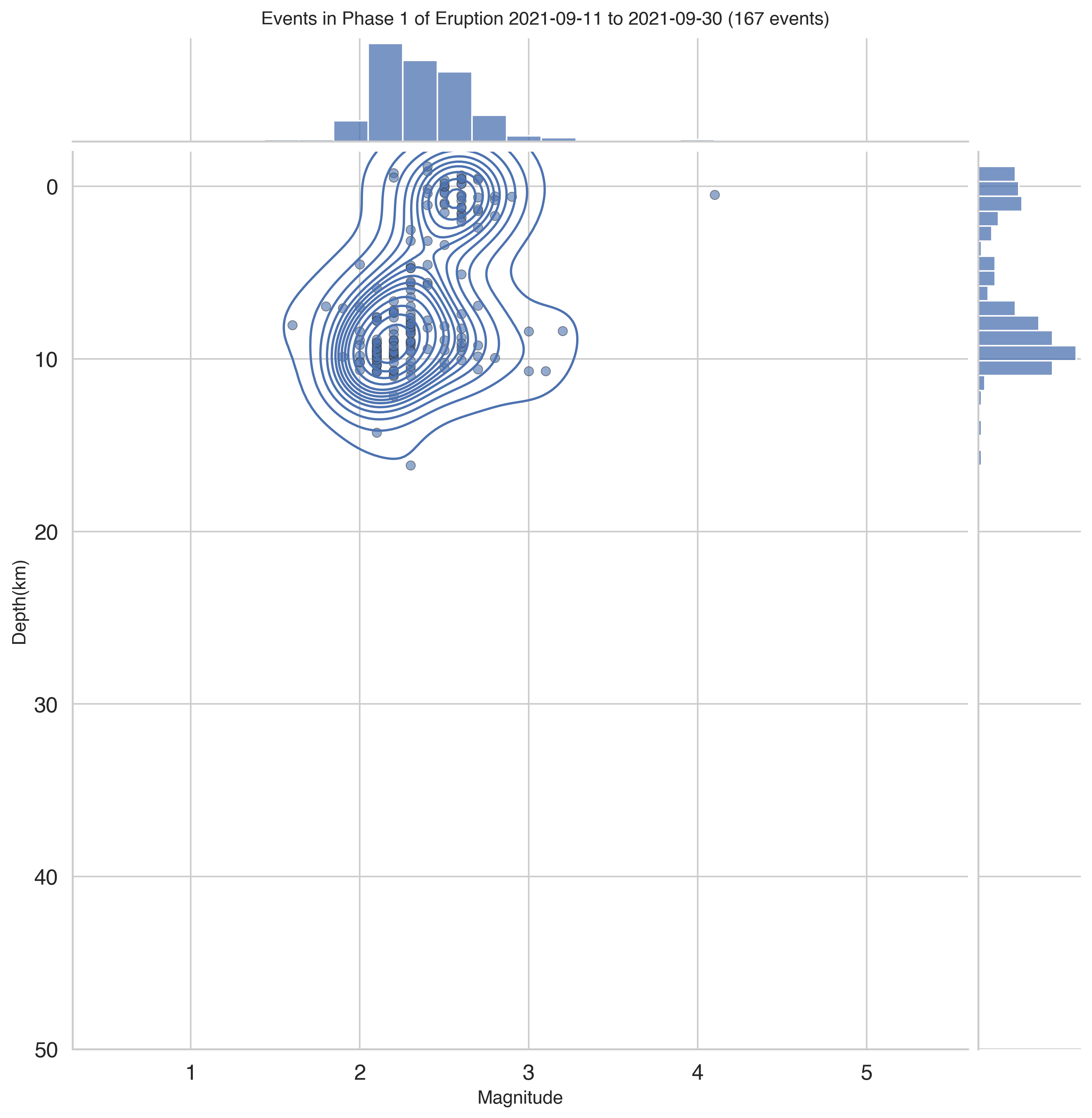

df_phase1 = df[(df['DateTime'] >= '2021-09-19 14:13:00')&(df['DateTime'] < '2021-10-01')]

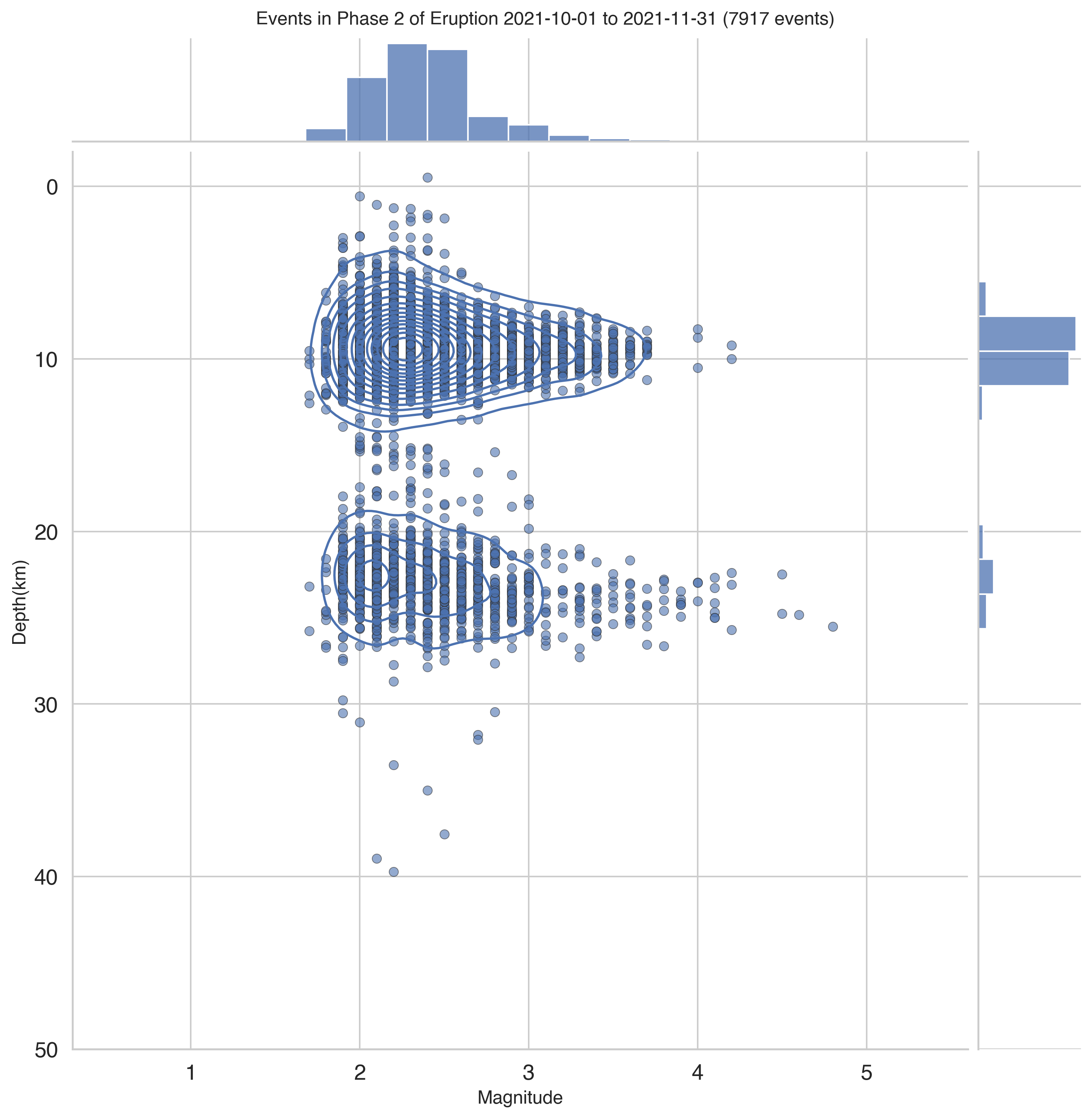

df_phase2 = df[(df['DateTime'] >= '2021-10-01')&(df['DateTime'] < '2021-12-01')]
df_phase3 = df[(df['DateTime'] >= '2021-12-01')&(df['DateTime'] <= '2021-12-31')]

df_erupt = df[(df['DateTime'] < '2022-01-01') & (df['DateTime'] > '2021-09-11')]

df_erupt_1 = df_erupt[df_erupt['Magnitude'] < 1.0]
df_erupt_2 = df_erupt[(df_erupt['Magnitude'] >= 1.0)&(df_erupt['Magnitude'] < 2.0)]
df_erupt_3 = df_erupt[(df_erupt['Magnitude'] >= 2.0)&(df_erupt['Magnitude'] < 3.0)]
df_erupt_4 = df_erupt[(df_erupt['Magnitude'] >= 3.0)&(df_erupt['Magnitude'] < 4.0)]
df_erupt_5 = df_erupt[df_erupt['Magnitude'] > 4.0]
tab10_colors = (
    (0.12156862745098039, 0.4666666666666667,  0.7058823529411765  ),  # 1f77b4
    (1.0,                 0.4980392156862745,  0.054901960784313725),  # ff7f0e
    (0.17254901960784313, 0.6274509803921569,  0.17254901960784313 ),  # 2ca02c
    (0.8392156862745098,  0.15294117647058825, 0.1568627450980392  ),  # d62728
    (0.5803921568627451,  0.403921568627451,   0.7411764705882353  ),  # 9467bd
    (0.5490196078431373,  0.33725490196078434, 0.29411764705882354 ),  # 8c564b
    (0.8901960784313725,  0.4666666666666667,  0.7607843137254902  ),  # e377c2
    (0.4980392156862745,  0.4980392156862745,  0.4980392156862745  ),  # 7f7f7f
    (0.7372549019607844,  0.7411764705882353,  0.13333333333333333 ),  # bcbd22
    (0.09019607843137255, 0.7450980392156863,  0.8117647058823529),    # 17becf
)

tab20_colors = (
    (0.12156862745098039, 0.4666666666666667,  0.7058823529411765  ),  # 1f77b4
    (0.6823529411764706,  0.7803921568627451,  0.9098039215686274  ),  # aec7e8
    (1.0,                 0.4980392156862745,  0.054901960784313725),  # ff7f0e
    (1.0,                 0.7333333333333333,  0.47058823529411764 ),  # ffbb78
    (0.17254901960784313, 0.6274509803921569,  0.17254901960784313 ),  # 2ca02c
    (0.596078431372549,   0.8745098039215686,  0.5411764705882353  ),  # 98df8a
    (0.8392156862745098,  0.15294117647058825, 0.1568627450980392  ),  # d62728
    (1.0,                 0.596078431372549,   0.5882352941176471  ),  # ff9896
    (0.5803921568627451,  0.403921568627451,   0.7411764705882353  ),  # 9467bd
    (0.7725490196078432,  0.6901960784313725,  0.8352941176470589  ),  # c5b0d5
    (0.5490196078431373,  0.33725490196078434, 0.29411764705882354 ),  # 8c564b
    (0.7686274509803922,  0.611764705882353,   0.5803921568627451  ),  # c49c94
    (0.8901960784313725,  0.4666666666666667,  0.7607843137254902  ),  # e377c2
    (0.9686274509803922,  0.7137254901960784,  0.8235294117647058  ),  # f7b6d2
    (0.4980392156862745,  0.4980392156862745,  0.4980392156862745  ),  # 7f7f7f
    (0.7803921568627451,  0.7803921568627451,  0.7803921568627451  ),  # c7c7c7
    (0.7372549019607844,  0.7411764705882353,  0.13333333333333333 ),  # bcbd22
    (0.8588235294117647,  0.8588235294117647,  0.5529411764705883  ),  # dbdb8d
    (0.09019607843137255, 0.7450980392156863,  0.8117647058823529  ),  # 17becf
    (0.6196078431372549,  0.8549019607843137,  0.8980392156862745),    # 9edae5
)

tab20c_colors = (
    (0.19215686274509805, 0.5098039215686274,  0.7411764705882353  ),  # 3182bd
    (0.4196078431372549,  0.6823529411764706,  0.8392156862745098  ),  # 6baed6
    (0.6196078431372549,  0.792156862745098,   0.8823529411764706  ),  # 9ecae1
    (0.7764705882352941,  0.8588235294117647,  0.9372549019607843  ),  # c6dbef
    (0.9019607843137255,  0.3333333333333333,  0.050980392156862744),  # e6550d
    (0.9921568627450981,  0.5529411764705883,  0.23529411764705882 ),  # fd8d3c
    (0.9921568627450981,  0.6823529411764706,  0.4196078431372549  ),  # fdae6b
    (0.9921568627450981,  0.8156862745098039,  0.6352941176470588  ),  # fdd0a2
    (0.19215686274509805, 0.6392156862745098,  0.32941176470588235 ),  # 31a354
    (0.4549019607843137,  0.7686274509803922,  0.4627450980392157  ),  # 74c476
    (0.6313725490196078,  0.8509803921568627,  0.6078431372549019  ),  # a1d99b
    (0.7803921568627451,  0.9137254901960784,  0.7529411764705882  ),  # c7e9c0
    (0.4588235294117647,  0.4196078431372549,  0.6941176470588235  ),  # 756bb1
    (0.6196078431372549,  0.6039215686274509,  0.7843137254901961  ),  # 9e9ac8
    (0.7372549019607844,  0.7411764705882353,  0.8627450980392157  ),  # bcbddc
    (0.8549019607843137,  0.8549019607843137,  0.9215686274509803  ),  # dadaeb
    (0.38823529411764707, 0.38823529411764707, 0.38823529411764707 ),  # 636363
    (0.5882352941176471,  0.5882352941176471,  0.5882352941176471  ),  # 969696
    (0.7411764705882353,  0.7411764705882353,  0.7411764705882353  ),  # bdbdbd
    (0.8509803921568627,  0.8509803921568627,  0.8509803921568627  ),  # d9d9d9
)

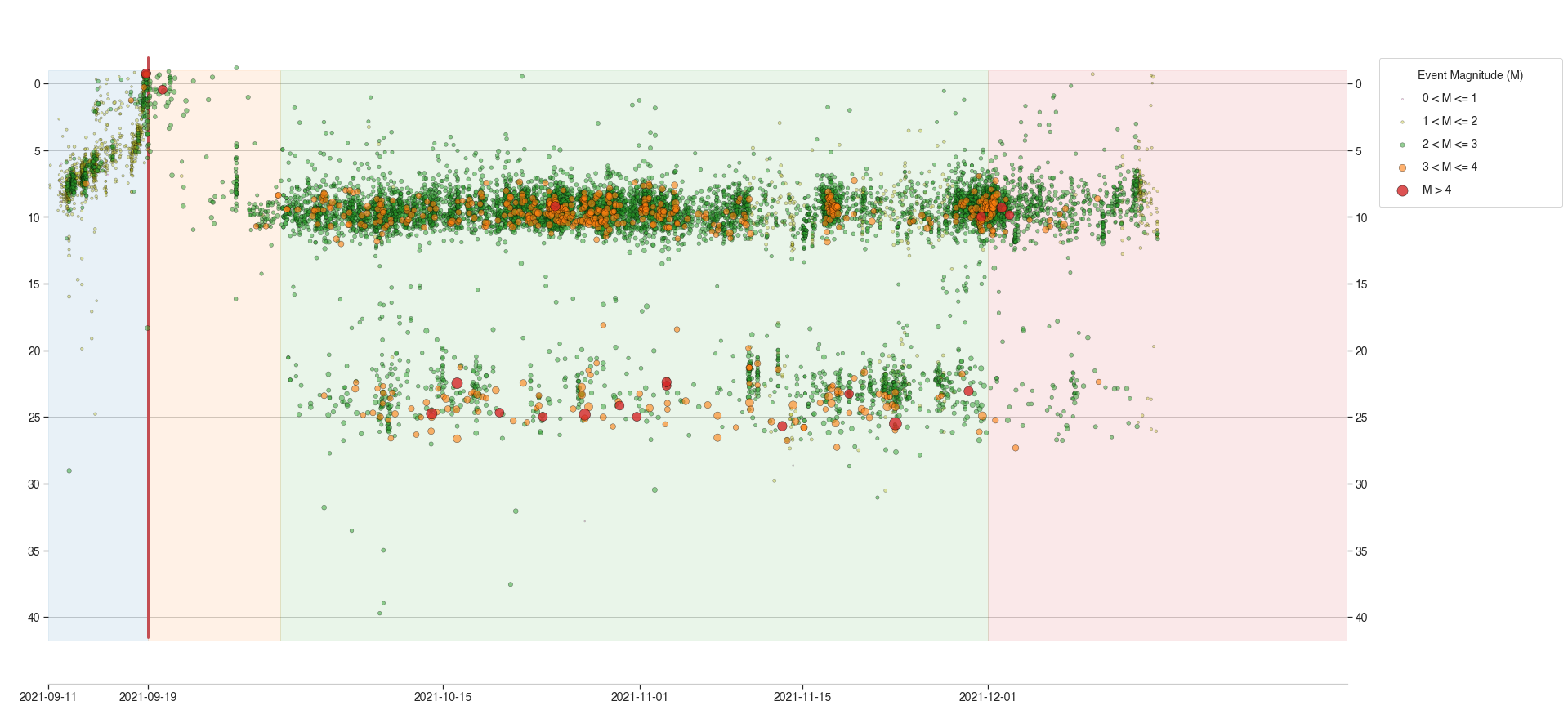

from matplotlib.patches import Rectangle

import datetime as dt
from matplotlib.dates import date2num, num2date

matplotlib.rcParams['font.sans-serif'] = "Helvetica"
matplotlib.rcParams['font.family'] = "sans-serif"
matplotlib.rcParams['xtick.labelsize'] = 14
matplotlib.rcParams['ytick.labelsize'] = 14
matplotlib.rcParams['ytick.labelleft'] = True
matplotlib.rcParams['ytick.labelright'] = True

%matplotlib inline
fig = matplotlib.pyplot.figure(figsize=(24,12))
fig.tight_layout()
# Creating axis
# add_axes([xmin,ymin,dx,dy])
ax_min = fig.add_axes([0.01, 0.01, 0.01, 0.01])
ax_min.axis('off')
ax_max = fig.add_axes([0.99, 0.99, 0.01, 0.01])
ax_max.axis('off')

ax_timeline = fig.add_axes([0.04, 0.1, 0.92, 0.85])
ax_timeline.spines["top"].set_visible(False)
ax_timeline.spines["right"].set_visible(False)
ax_timeline.spines["left"].set_visible(False)
ax_timeline.grid(axis='x')


ax_timeline.axvline(x=dt.datetime(2021, 9, 19, 14, 13), ymin=0.005, ymax=0.972, color='r', linewidth=3)


def make_scatter(df, c, alpha=0.8):
    M = 3*np.exp2(1.3*df['Magnitude'])
    return ax_timeline.scatter(df['DateTime'], df['Depth(km)'], s=M, c=c, alpha=alpha, edgecolor='black', linewidth=0.5, zorder=2);

# make_scatter(df_erupt, c=tab20c_colors[-1])
points_1 = make_scatter(df_erupt_1, c=[tab20c_colors[-1]], alpha=0.8)
points_2 = make_scatter(df_erupt_2, c=[tab20c_colors[-1]], alpha=0.8)
points_3 = make_scatter(df_erupt_3, c=[tab20c_colors[-1]], alpha=0.8)
points_4 = make_scatter(df_erupt_4, c=[tab20c_colors[-1]], alpha=0.8)
points_5 = make_scatter(df_erupt_5, c=[tab20c_colors[-1]], alpha=0.8)

ax_timeline.tick_params(axis='x', labelrotation=0, bottom=True)
ax_timeline.set_ylabel('')
ax_timeline.yaxis.set_ticks_position('both')
ax_timeline.yaxis.set_ticks_position('both')


xticks = ax_timeline.get_xticks()
new_xticks = [date2num(pd.to_datetime('2021-09-11')),
    date2num(pd.to_datetime('2021-09-19 14:13:00'))]
new_xticks = np.append(new_xticks, xticks[2:-1])
ax_timeline.set_xticks(new_xticks)


ax_timeline.invert_yaxis()
ax_timeline.spines['bottom'].set_position(('data', 45))
ax_timeline.margins(tight=True, x=0)
ax_timeline.legend(
    [points_1, points_2, points_3, points_4, points_5],
    ['0 < M <= 1','1 < M <= 2','2 < M <= 3','3 < M <= 4','M > 4'],
    loc='best', bbox_to_anchor=(1.02, 0.88, 0.15, 0.1), fancybox=True, borderpad=1.0, labelspacing=1, mode="expand", title="Event Magnitude (M)", fontsize=14, title_fontsize=14)


ax_timeline.add_patch(Rectangle((date2num(pd.to_datetime('2021-09-11')), -1), date2num(pd.to_datetime('2021-09-19 14:13:00'))-date2num(pd.to_datetime('2021-09-11')), 46, color=tab20_colors[0], zorder=1, alpha=0.05))
ax_timeline.add_patch(Rectangle((date2num(pd.to_datetime('2021-09-19 14:13:00')), -1), date2num(pd.to_datetime('2021-10-01'))-date2num(pd.to_datetime('2021-09-19 14:13:00')), 46, color=tab20_colors[2], zorder=1, alpha=0.05))
ax_timeline.add_patch(Rectangle((date2num(pd.to_datetime('2021-10-01')), -1), date2num(pd.to_datetime('2021-12-01'))-date2num(pd.to_datetime('2021-10-01')), 46, color=tab20_colors[4], zorder=1, alpha=0.05))
ax_timeline.add_patch(Rectangle((date2num(pd.to_datetime('2021-12-01')), -1), date2num(pd.to_datetime('2021-12-31'))-date2num(pd.to_datetime('2021-12-01'))+1, 46, color=tab20_colors[6], zorder=1, alpha=0.05));


plt.savefig('timeline_grey_with_panels_involcan.eps', format='eps')
The PostScript backend does not support transparency; partially transparent artists will be rendered opaque.
<Figure size 1728x864 with 3 Axes>

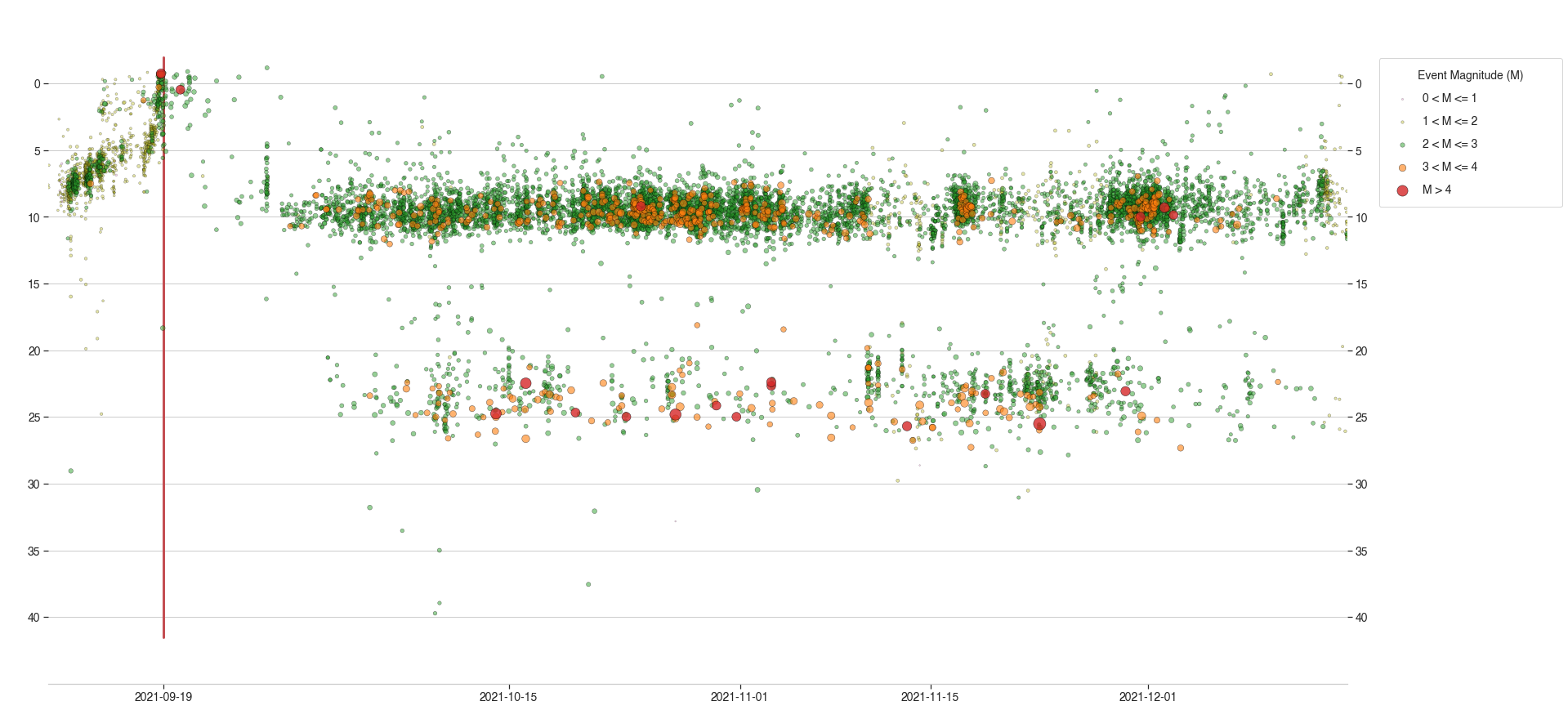

from matplotlib.patches import Rectangle

import datetime as dt
from matplotlib.dates import date2num, num2date

matplotlib.rcParams['font.sans-serif'] = "Helvetica"
matplotlib.rcParams['font.family'] = "sans-serif"
matplotlib.rcParams['xtick.labelsize'] = 14
matplotlib.rcParams['ytick.labelsize'] = 14
matplotlib.rcParams['ytick.labelleft'] = True
matplotlib.rcParams['ytick.labelright'] = True

%matplotlib inline
fig = matplotlib.pyplot.figure(figsize=(24,12))
fig.tight_layout()
# Creating axis
# add_axes([xmin,ymin,dx,dy])
ax_min = fig.add_axes([0.01, 0.01, 0.01, 0.01])
ax_min.axis('off')
ax_max = fig.add_axes([0.99, 0.99, 0.01, 0.01])
ax_max.axis('off')

ax_timeline = fig.add_axes([0.04, 0.1, 0.92, 0.85])
ax_timeline.spines["top"].set_visible(False)
ax_timeline.spines["right"].set_visible(False)
ax_timeline.spines["left"].set_visible(False)
ax_timeline.grid(axis='x')


ax_timeline.axvline(x=dt.datetime(2021, 9, 19, 14, 13), ymin=0.005, ymax=0.972, color='r', linewidth=3)


def make_scatter(df, c, alpha=0.8):
    M = 3*np.exp2(1.3*df['Magnitude'])
    return ax_timeline.scatter(df['DateTime'], df['Depth(km)'], s=M, c=c, alpha=alpha, edgecolor='black', linewidth=0.5, zorder=2);

# make_scatter(df_erupt, c=tab20c_colors[-1])
points_1 = make_scatter(df_erupt_1, c=[tab20_colors[12]], alpha=0.3)
points_2 = make_scatter(df_erupt_2, c=[tab20_colors[16]], alpha=0.4)
points_3 = make_scatter(df_erupt_3, c=[tab20_colors[4]], alpha=0.5)
points_4 = make_scatter(df_erupt_4, c=[tab20_colors[2]], alpha=0.6)
points_5 = make_scatter(df_erupt_5, c=[tab20_colors[6]], alpha=0.8)

ax_timeline.tick_params(axis='x', labelrotation=0, bottom=True)
ax_timeline.set_ylabel('')
ax_timeline.yaxis.set_ticks_position('both')
ax_timeline.yaxis.set_ticks_position('both')


xticks = ax_timeline.get_xticks()
new_xticks = [date2num(pd.to_datetime('2021-09-11')),
    date2num(pd.to_datetime('2021-09-19 14:13:00'))]
new_xticks = np.append(new_xticks, xticks[2:-1])
ax_timeline.set_xticks(new_xticks)


ax_timeline.invert_yaxis()
ax_timeline.spines['bottom'].set_position(('data', 45))
ax_timeline.margins(tight=True, x=0)
ax_timeline.legend(
    [points_1, points_2, points_3, points_4, points_5],
    ['0 < M <= 1','1 < M <= 2','2 < M <= 3','3 < M <= 4','M > 4'],
    loc='best', bbox_to_anchor=(1.02, 0.88, 0.15, 0.1), fancybox=True, borderpad=1.0, labelspacing=1, mode="expand", title="Event Magnitude (M)", fontsize=14, title_fontsize=14)


plt.savefig('timeline_colors_involcan.eps', format='eps')
The PostScript backend does not support transparency; partially transparent artists will be rendered opaque.
<Figure size 1728x864 with 3 Axes>
from matplotlib.patches import Rectangle

import datetime as dt
from matplotlib.dates import date2num, num2date

matplotlib.rcParams['font.sans-serif'] = "Helvetica"
matplotlib.rcParams['font.family'] = "sans-serif"
matplotlib.rcParams['xtick.labelsize'] = 14
matplotlib.rcParams['ytick.labelsize'] = 14
matplotlib.rcParams['ytick.labelleft'] = True
matplotlib.rcParams['ytick.labelright'] = True

%matplotlib inline
fig = matplotlib.pyplot.figure(figsize=(24,12))
fig.tight_layout()
# Creating axis
# add_axes([xmin,ymin,dx,dy])
ax_min = fig.add_axes([0.01, 0.01, 0.01, 0.01])
ax_min.axis('off')
ax_max = fig.add_axes([0.99, 0.99, 0.01, 0.01])
ax_max.axis('off')

ax_timeline = fig.add_axes([0.04, 0.1, 0.92, 0.85])
ax_timeline.spines["top"].set_visible(False)
ax_timeline.spines["right"].set_visible(False)
ax_timeline.spines["left"].set_visible(False)
ax_timeline.grid(axis='x')


ax_timeline.axvline(x=dt.datetime(2021, 9, 19, 14, 13), ymin=0.005, ymax=0.972, color='r', linewidth=3)


def make_scatter(df, c, alpha=0.8):
    M = 3*np.exp2(1.3*df['Magnitude'])
    return ax_timeline.scatter(df['DateTime'], df['Depth(km)'], s=M, c=c, alpha=alpha, edgecolor='black', linewidth=0.5, zorder=2);

# make_scatter(df_erupt, c=tab20c_colors[-1])
points_1 = make_scatter(df_erupt_1, c=[tab20_colors[12]], alpha=0.3)
points_2 = make_scatter(df_erupt_2, c=[tab20_colors[16]], alpha=0.4)
points_3 = make_scatter(df_erupt_3, c=[tab20_colors[4]], alpha=0.5)
points_4 = make_scatter(df_erupt_4, c=[tab20_colors[2]], alpha=0.6)
points_5 = make_scatter(df_erupt_5, c=[tab20_colors[6]], alpha=0.8)

ax_timeline.tick_params(axis='x', labelrotation=0, bottom=True)
ax_timeline.set_ylabel('')
ax_timeline.yaxis.set_ticks_position('both')
ax_timeline.yaxis.set_ticks_position('both')


xticks = ax_timeline.get_xticks()
new_xticks = [date2num(pd.to_datetime('2021-09-11')),
    date2num(pd.to_datetime('2021-09-19 14:13:00'))]
new_xticks = np.append(new_xticks, xticks[2:-1])
ax_timeline.set_xticks(new_xticks)


ax_timeline.invert_yaxis()
ax_timeline.spines['bottom'].set_position(('data', 45))
ax_timeline.margins(tight=True, x=0)
ax_timeline.legend(
    [points_1, points_2, points_3, points_4, points_5],
    ['0 < M <= 1','1 < M <= 2','2 < M <= 3','3 < M <= 4','M > 4'],
    loc='best', bbox_to_anchor=(1.02, 0.88, 0.15, 0.1), fancybox=True, borderpad=1.0, labelspacing=1, mode="expand", title="Event Magnitude (M)", fontsize=14, title_fontsize=14)


ax_timeline.add_patch(Rectangle((date2num(pd.to_datetime('2021-09-11')), -1), date2num(pd.to_datetime('2021-09-19 14:13:00'))-date2num(pd.to_datetime('2021-09-11')), 46, color=tab20_colors[0], zorder=1, alpha=0.1))
ax_timeline.add_patch(Rectangle((date2num(pd.to_datetime('2021-09-19 14:13:00')), -1), date2num(pd.to_datetime('2021-10-01'))-date2num(pd.to_datetime('2021-09-19 14:13:00')), 46, color=tab20_colors[2], zorder=1, alpha=0.1))
ax_timeline.add_patch(Rectangle((date2num(pd.to_datetime('2021-10-01')), -1), date2num(pd.to_datetime('2021-12-01'))-date2num(pd.to_datetime('2021-10-01')), 46, color=tab20_colors[4], zorder=1, alpha=0.1))
ax_timeline.add_patch(Rectangle((date2num(pd.to_datetime('2021-12-01')), -1), date2num(pd.to_datetime('2021-12-31'))-date2num(pd.to_datetime('2021-12-01'))+1, 46, color=tab20_colors[6], zorder=1, alpha=0.1));


plt.savefig('timeline_colors_no_panels_involcan.eps', format='eps')
The PostScript backend does not support transparency; partially transparent artists will be rendered opaque.
<Figure size 1728x864 with 3 Axes>

Cumulative Distrubtion Plots

def cumulative_events_mag_depth(df, hue='Depth', kind='scatter', ax=None, dpi=300, palette=None, kde=True):
    matplotlib.rcParams['ytick.labelright'] = False
    g = sns.jointplot(x="Magnitude", y="Depth(km)", data=df,
                      kind=kind, hue=hue, height=10, space=0.1, marginal_ticks=False, ratio=8, alpha=0.6,
                      hue_order=['Shallow (<18km)', 'Interchange (18km>x>28km)', 'Deep (>28km)'],
                      ax=ax, palette=palette, ylim=(-2,50), xlim=(0.3,5.6), edgecolor=".2", marginal_kws=dict(bins=20, hist_kws={'edgecolor': 'black'}))
    if kde:
        g.plot_joint(sns.kdeplot, color="b", zorder=1, levels=15, ax=ax)
    g.fig.axes[0].invert_yaxis();
    g.fig.set_dpi(dpi)


def cumulative_events_spatial(df, hue='Depth', kind='scatter', ax=None, dpi=300, palette=None):
    g = sns.jointplot(x="Longitude", y="Depth(km)", data=df,
                      kind=kind, hue=hue, color="m", height=10, palette=palette,
                      hue_order=['Shallow (<18km)', 'Interchange (18km>x>28km)',  'Deep (>28km)', ], ax=ax, ylim=(-2,50))
    g.plot_joint(sns.kdeplot, color="b", zorder=1, levels=15, ax=ax)
    g.fig.axes[0].invert_yaxis();
cumulative_events_mag_depth(df, hue=None)
plt.suptitle('Cumulative Events 01-01-2017 to 01-01-2022', y=1.01);
plt.savefig('cuml_events_all_involcan.eps', format='eps')
/opt/homebrew/Caskroom/miniforge/base/envs/lapalma-earthquakes/lib/python3.10/site-packages/seaborn/axisgrid.py:2203: UserWarning: The marginal plotting function has changed to `histplot`, which does not accept the following argument(s): hist_kws.
  warnings.warn(msg, UserWarning)
The PostScript backend does not support transparency; partially transparent artists will be rendered opaque.
<Figure size 3000x3000 with 3 Axes>
cumulative_events_mag_depth(df_early, hue=None)
plt.suptitle(f'Events prior to 2021-09-11 ({len(df_early.index)} events)', y=1.01)
plt.savefig('cuml_events_early_involcan.eps', format='eps')
/opt/homebrew/Caskroom/miniforge/base/envs/lapalma-earthquakes/lib/python3.10/site-packages/seaborn/axisgrid.py:2203: UserWarning: The marginal plotting function has changed to `histplot`, which does not accept the following argument(s): hist_kws.
  warnings.warn(msg, UserWarning)
The PostScript backend does not support transparency; partially transparent artists will be rendered opaque.
<Figure size 3000x3000 with 3 Axes>
cumulative_events_mag_depth(df_pre, hue=None)
plt.suptitle(f"Events Immediately before Eruption 11-19 September 2021 ({len(df_pre.index)} events)", y=1.01);
plt.savefig('cuml_events_preerupt_involcan.eps', format='eps')
/opt/homebrew/Caskroom/miniforge/base/envs/lapalma-earthquakes/lib/python3.10/site-packages/seaborn/axisgrid.py:2203: UserWarning: The marginal plotting function has changed to `histplot`, which does not accept the following argument(s): hist_kws.
  warnings.warn(msg, UserWarning)
The PostScript backend does not support transparency; partially transparent artists will be rendered opaque.
<Figure size 3000x3000 with 3 Axes>
cumulative_events_mag_depth(df_phase1, hue=None)
plt.suptitle(f"Events in Phase 1 of Eruption 2021-09-11 to 2021-09-30 ({len(df_phase1.index)} events)", y=1.01);
plt.savefig('cuml_events_phase1_involcan.eps', format='eps')
/opt/homebrew/Caskroom/miniforge/base/envs/lapalma-earthquakes/lib/python3.10/site-packages/seaborn/axisgrid.py:2203: UserWarning: The marginal plotting function has changed to `histplot`, which does not accept the following argument(s): hist_kws.
  warnings.warn(msg, UserWarning)
The PostScript backend does not support transparency; partially transparent artists will be rendered opaque.
<Figure size 3000x3000 with 3 Axes>
cumulative_events_mag_depth(df_phase2, hue=None)
plt.suptitle(f"Events in Phase 2 of Eruption 2021-10-01 to 2021-11-31 ({len(df_phase2.index)} events)", y=1.01);
plt.savefig('cuml_events_phase2_involcan.eps', format='eps')
/opt/homebrew/Caskroom/miniforge/base/envs/lapalma-earthquakes/lib/python3.10/site-packages/seaborn/axisgrid.py:2203: UserWarning: The marginal plotting function has changed to `histplot`, which does not accept the following argument(s): hist_kws.
  warnings.warn(msg, UserWarning)
The PostScript backend does not support transparency; partially transparent artists will be rendered opaque.
<Figure size 3000x3000 with 3 Axes>
cumulative_events_mag_depth(df_phase3, hue=None)
plt.suptitle(f"Events in Phase 3 of Eruption 2021-12-01 to 2021-12-31 ({len(df_phase3.index)} events)", y=1.01);
plt.savefig('cuml_events_phase3_involcan.eps', format='eps')
/opt/homebrew/Caskroom/miniforge/base/envs/lapalma-earthquakes/lib/python3.10/site-packages/seaborn/axisgrid.py:2203: UserWarning: The marginal plotting function has changed to `histplot`, which does not accept the following argument(s): hist_kws.
  warnings.warn(msg, UserWarning)
The PostScript backend does not support transparency; partially transparent artists will be rendered opaque.
<Figure size 3000x3000 with 3 Axes>
